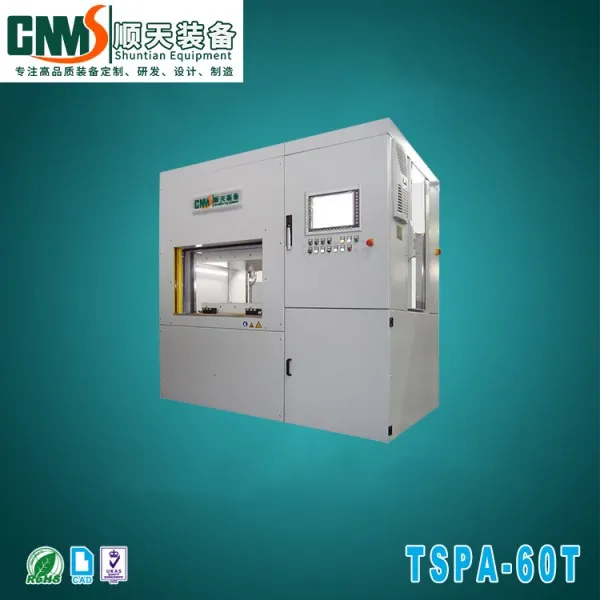

TSPA-60T MEA servo hot press former

Our hot forming press can use to produce fuel cell MEA composite material and metal which is suitable for a wide range of production. The hot forming press can mold the machine parts in smaller tonnage.

8618629511413

cwf001@dlcntn.com

8613649243797

TSPA-60T MEA servo hot press former

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Precision machining frame.

Precision parallelism ±0.02mm, flatness ±0.02mm.

section-compartmentalized heating, temperature control uniformity±0.02; control accuracy rate 1%

The accuracy of stroke control is high, and the repetitive precision is controlled in 0.1mm.

Extremely low levels of noise and vibration.

Hydraulic system equipped with fault monitoring device.

PLC control system with digital display.

High operating temperature.

Parameters

No.	Items			Unit	Data
1	Nominal Force			KN	500	1000	2000	3000
2	Rated maximum working pressure			MPa	20
3	Distance between the worktable where top and below			mm	300
4	Maximum stroke of the main electric cylinders			mm	300
5	Effective size of worktable	Width		mm	500	500	1000	1300
		Length		mm	500	500	1000	800
6	Worktable stroke speed	Quick up		mm/s	1-60
		Slow up		mm/s	0.01-3
		Slow down		mm/s	1-30
		Quick down		mm/s	1-60
7	Parallelism of top and below worktable			mm	±0.02
8	flatness of work table			mm	±0.02
9	Pressure Precision Control			MPa	±1%
10	Maximum operating temperature of hot plate			℃	250
11	Heating rate (controllable)			℃/min	1-6
12	Parametric formulation		Pressure stair	pcs	9
13	Parametric formulation		Temperature stair	pcs	9
14	Parametric formulation		Time stair	pcs	9
15	Control precision of display temperature			℃	±0.5
16	Hot plate plane temperature error			℃	±2
17	pressure maintaining			MPa	≤1/2
18	Power of Motor			KW	≤3
19	Heating power			KW	20	30	35	40
20	Height between Down hot plate worktable and ground			mm	≤750	1000
21	Equipment weight			KG	≦2000	3000	80000	12000

Application

Typical applications for these presses include: fuel cell MEA thermoforming, composite thermoforming machines, automotive parts, molded parts, net forming, and correct formed parts. They can also be used for molding complex titanium alloy parts and other clad metals.
