PEM Electrolyzer MEA Servo Hot Press Production Line

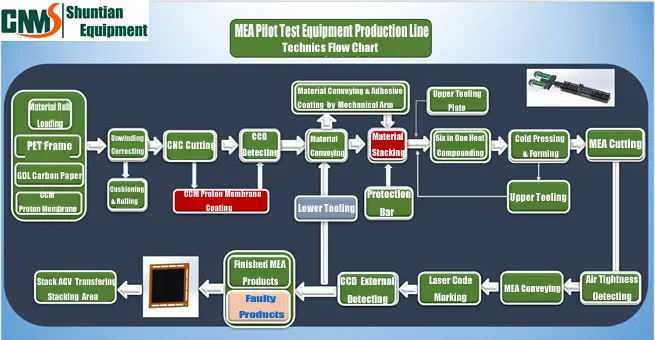

Production line flow chart：
|
Parameters |
SMEA |
SMEA |
SMEA |
SMEA |
|
Nominal force(KN) |
100 |
500 |
2000 |
3000 |
|
Size of membrane electrode- length(mm) |
400 |
500 |
800 |
1000 |
|
Size of membrane electrode- width(mm) |
400 |
500 |
800 |
1300 |
|
Maximum stroke(mm) |
300（customizable） |
|||
|
Maximum opening(mm) |
300（customizable） |
|||
|
Maximum vacuum degree(MPa) |
-0.098 |
|||
|
Effective size of hot plate-front&back(mm) |
400-1300 |
|||
|
Effective size of hot plate-left&right(mm) |
400-1600 |
|||
|
Maximum temperature(℃) |
250 |
|||
|
Parallelism(mm) |
±0.02 |
|||
|
Flatness(mm) |
±0.02 |
|||
|
Stroke control accuracy(mm) |
0.05 |
|||
|
Glue size(mm) |
（500*500）-（800*1600） |
|||
|
Conveying size(mm) |
|
|||
|
Transfer size(mm) |
customizable |
|||
|
Raw material cutting(mm) |
|
|||
|
Size of membrane electrode(mm) |
|
|||
|
Cold qualitative dimension(mm) |
|
|||
|
Cutting sizes(mm) |
|
|||
|
Air tight inspection size(mm) |
|
|||
|
Dimension of injection seal ring(mm) |
customizable |
|||
|
Air tight detection pressure(Mpa) |
＜0.4 |
|||
|
Airtight flow detection flow(ML) |
10 |
|||
|
Conveying beat(piece/min) |
2-3 |
|||
|
Manipulator stacking height(mm) |
100-300（customizable） |
|||
|
Manipulator stacking speed(piece/s) |
5 |
|||
|
Form and position tolerance of membrane electrode(mm) |
±0.1 |
|||
