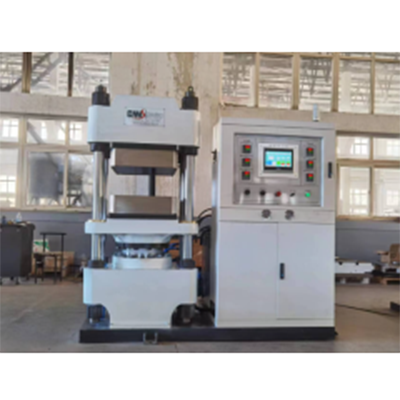

Fuel Cell MEA Servo Hot Press Former

We have over 30 years experiences on study and design the technique of the MEA Servo Hot Press Former, optimize the manufacture technology about the production of MEA Servo Hot Press Former.

8618629511413

cwf001@dlcntn.com

8613649243797

Fuel Cell MEA Servo Hot Press Former

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

We have many years of experience in designing and manufacturing high quality hot presses, thermoforming presses. These presses have high precision machined frames, processed to very high quality with minimal distortion.

Our thermoforming presses can be used for fuel cell membrane electrodes, thermo-composites and metals, and are well suited for the production of a wide range of products. Because thermoforming presses can mold the same part with less tonnage,this type of hot forming press generally considered more efficient and better at forming complex parts.

The MEA Servo-electric hot forming press has a very superlative control system that provides the operator with complete control, easy use and accurate performance. MEA Servo-electric hot forming press can also be equipped with low temperature pressing procedure. With our expertise, we can provide advise for our customers to use the auxiliary equipment of our MEA Servo-electric hot forming press to improve performance, speed and efficiency.

Features

● Precision machining frame.

● Precision parallelism ±0.02mm, flatness ±0.02mm.

● Section-compartmentalized heating, temperature control uniformity±0.02; control accuracy rate 1%

● The accuracy of stroke control is high, and the repetitive precision is controlled in 0.1mm.

● Extremely low levels of noise and vibration.

● Hydraulic system equipped with fault monitoring device.

● PLC control system with digital display.

● High operating temperature.

Parameters

Because thermoforming presses use high temperatures to help form the workpiece, these presses require less capacity to produce the same product. Typical sizes for these presses range from 200-500 tons, but custom presses are available in larger sizes upon request.

No.	Item			Unit	Data
1	Nominal Pressure			KN	500	1000	2000	3000
2	Rated maximum working pressure			Mpa	20
3	Distance between Upper&Lower Platform			mm	300
4	Max Stroke of Cylinder			mm	300
5	Available Size of Platform	Left& Right		mm	500	500	1000	1300
		Front& Rear		mm	500	500	1000	800
6	Running Speed of Platform	Fast Running Upwards		mm/s	1-60
		Fast Running Downwards			1-60
		Slow Running Upwards		mm/s	0.01-3
		Slow Running Downwards		mm/s	1-30
7	Parallelism Degree of Upper&lower Platform			mm	±0.02
8	Working Platform Flatness			mm	±0.02
9	Pressure control Precision			KN	±1%
10	Max Temperature of Hot Plate			℃	250
11	Heating Rate（Controllable）			℃/min	1-6
12	Matrix Parameter		Pressure Gradient	KN	9
13			Temp Gradient	℃	9
14			Time Gradient	S	9
15	Temp Display Control Precision			℃	±0.5
16	Hot Plate Flat Temp Error			℃	±2
17	Equipment Pressure Maintaining & Drop			MPa	≤1/2
18	Motor Power（approximate）			KW	≤3KW
19	Heating Power			KW	20	30	35	40
20	Distance between Lower Hot plate and ground			mm	≤750	800
21	Total Weight			KG	≦2000	3000	80000	12000

Application

Typical applications for these presses include: fuel cell membrane electrode hot presses, composite hot presses, automotive parts, molded parts and inaccuracy correction. They can also be used to mold complex titanium alloy parts and other parts made of composite metals. Our typical thermoforming presses come in two main types, bench top thermoforming and hydraulic thermoforming. Please contact us for a complete list of customizable options, as well as the capacity of this press.
