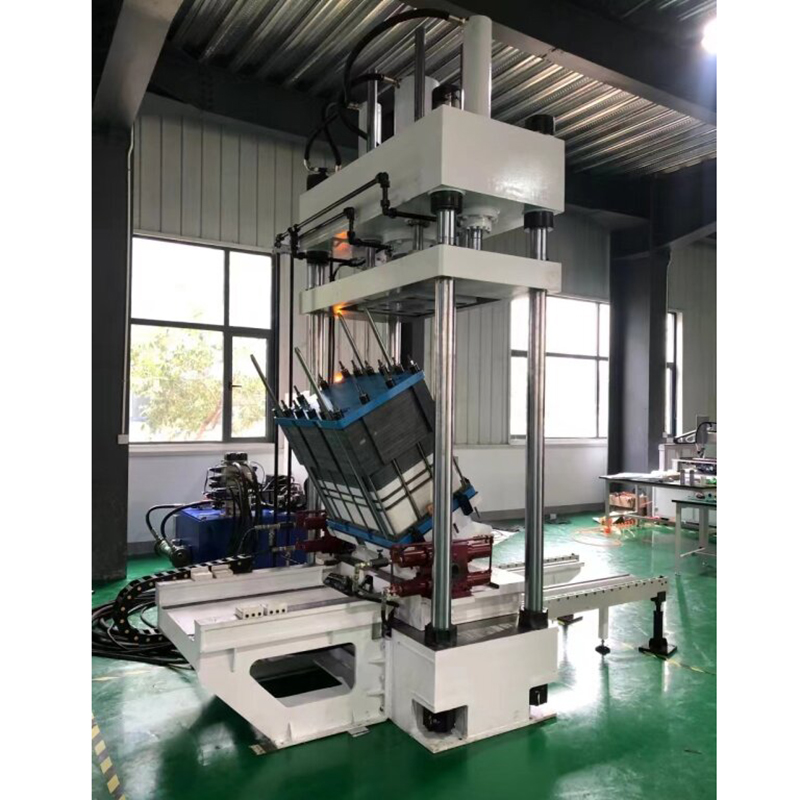

Flow battery stack assembly servo hydraulic press
We have over 30 years experiences on study and design the technique of the flow battery stack assembly servo hydraulic press.
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
1. The equipment adopts four-column structure servo motor driven ball screw movement, smart display or IPC for display.
2. Real-time press fitting curve display and storage function, realizing 0% of NG products.
3. High precision displacement and pressure,the repetition accuracy can reach 0.01 mm.
4. Multiple sets of press-fitting programs can be set to realize multi-purpose use of one machine.
5. Energy-saving effect of more than 99%, and more environmental protection, safe, can meet the requirements of the use of equipment in the clean room.
6. The running way of the equipment is as follows: fast forward, detection, press fitting, buffer, pressure preservation and return.
Parameters
| Parameters | UNIT | SPEM 40/60T | SPEM 40/100T | SPEM 50/200T | SPEM 70/315T |
| Nominal pressure | KN | 600 | 1000 | 2000 | 3150 |
| Compression spring force | KN | 400 | 400 | 500 | 700 |
| Reactor size Length | mm | 400-700 | 500-800 | 600-800 | 700-1500 |
| Width | mm | 400-700 | 500-800 | 600-800 | 700-1500 |
| Height | mm | 400-1000 | 400-1200 | 400-1200 | 500-1500 |
| Maximum stroke | mm | 900(configurable) | 1500 | ||
| Maximum opening | mm | 1300(configurable) | 1750 | ||
| Upper head size L&R | mm | 350(configurable) | |||
| F&B | mm | 350(configurable) | |||
| Compression spring size L&R | mm | 400(configurable) | |||
| F&B | mm | 700(configurable) | |||
| Effective size of workbench L&R | mm | 1300(configurable) | 2200 | ||
| F&B | mm | 1000(configurable) | 1600 | ||
| Parallelism | mm | ±0.02 | ±0.03 | ||
| Flatness | mm | ±0.02 | |||
| Moving distance of mobile station | mm | 10000-20000 | |||
| Stroke control accuracy | mm | 0.05 | |||
| Pressure control accuracy | mm | ±0.01 | |||
| Display accuracy | mm | ±0.001 | |||
| Boundary dimensions of stack products | mm | 1500(Length)*1000(Width)*2000(Height) | |||
| Total number of stacked pieces | 800 | ||||
